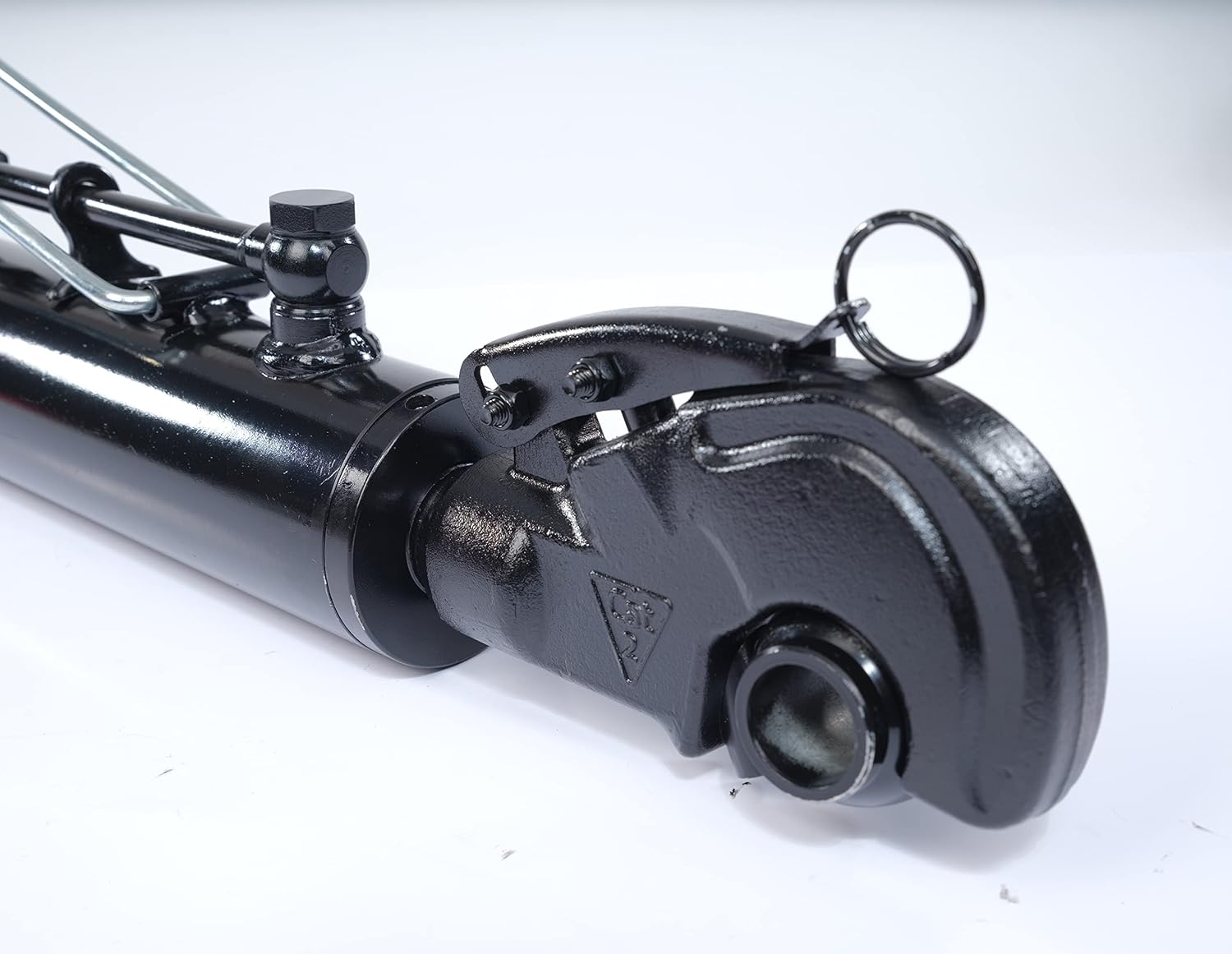

Hydraulic Top Link Cat. 2-2 with Hook Inc. Locking Block Min. 20 7/8”→ Max. 29 1/8” with 2 x Hoses Stroke. 8 1/8”

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this - an unbeatable combination in combination with the integrated locking block *. * When adjusting the upper link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor's control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted. Furnishing: High quality and workmanship and painted Incl. Locking block. Hydraulic pressure max. 250 bar Thrust: 3.5 to Pulling force: 2.3 to Weight about 15 kg + 2 x hydraulic hose with plug and dust cover. Technical specifications: Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 Hose Length: 75 cm , 29,5"

• Including 2 x Hoses, 2 x Male Couplers with dust cover, 2 x Fittings , 2 x Washers
• Improved Packaging. Hose Length : 29,5" . The male quick couplers are 1/2" BSP Poppet Style
• The piston rod can be rotated as needed. Holder to hold the unit when it is un-used
• This top link is equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve
• Painted Black Color (Rarely paint damages & Scratches during cargo)
